Galvanized 3.4m Loading Dock Shelters 600mm Frame Blue Giant Dock Seals
|Place of Origin||Henan, China|
|Model Number||Yuou-Dock shelter|
|Minimum Order Quantity||1 piece|
|Price||$1000.00 - $2000.00/Piece|
|Packaging Details||Standard export wooden case|
|Delivery Time||15 work days|
|Payment Terms||D/A, L/C, , T/T, Western Union, MoneyGram|
|Supply Ability||1000 Piece/Pieces per Month|
|Product Name||Air Bag Inflatable Dock Shelter For Cargo Cold Storage Warehouse Container||After-sale Service||Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other|
|Control System||Airbag Eletric System||Size||3.4X3.4m Or Customized|
|Frame Thickness||600mm||Top Curtain Width||600mm|
|Advantage||Good Sealing||Application||Loading And Unloading Area|
3.4m Loading Dock Shelters,
600mm Loading Dock Shelters,
Galvanized Blue Giant Dock Seals

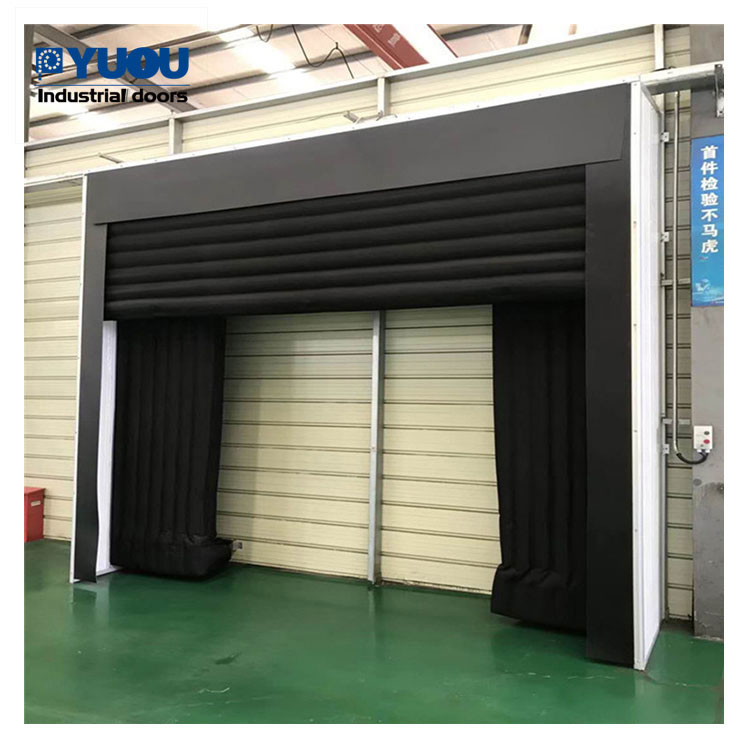

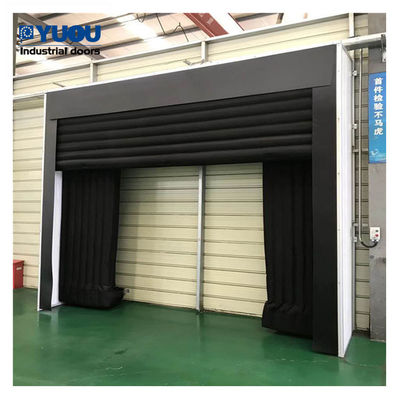

Air Bag Inflatable Dock Shelter For Cargo Cold Storage Warehouse Container
Adopt the PVC fabric material as the airbag. When working, the automatic air pump blow air into the joined air bags, to fill the space between door and truck containers. It can work for trucks with various container sizes.
Inflatable dock shelter adapts accurately to various size of lorry. It offers excellent sealing properties and for the most part prevents outdoor temperature reaching warehouse. Thus it is fit for areas with high demand for thermal insulation and air-tightness, like food and pharmaceutical warehouses.
Not until the vehicle has safely docked, is the dock shelter fan switched on, allowing the dock shelter to inflate around the vehicle and providing an airtight and insulated seal. Once loading has been completed and the fan is switched off, the cushion retract into the enclosure.
Small air opening on the undersides of the cushions ensure constant pressure. Any water on the top of the lorry is blown away at the same time.
Roof and side cladding
Of thermally insulated steel panels, 20mm thick, with aluminum corner profiles in the rounded soft line look.
Flexible front strips
2-layer, elastic substrate of polyester, PVC-coated on both sides, approx. 3mm thick.
In weather-resistant, permanently elastic and high-frequency welded flap material.
