Air Tight 5*5m Quick Roll Up Doors PVC Fabric Fireproof For Pharmaceutical Factory
| Place of Origin | Henan, China |
|---|---|
| Brand Name | YUOU |
| Certification | ISO9001 |
| Model Number | Yuou-high speed-Zipper |
| Minimum Order Quantity | 1 piece |
| Price | $800.00 - $1300.00/Piece |
| Packaging Details | Standard export wooden case |
| Delivery Time | 7-10 work days |
| Payment Terms | D/A, L/C, , T/T, Western Union, MoneyGram |
| Supply Ability | 1000 Piece/Pieces per Month |
Product Details
| Product Name | Air Tight Quick PVC Fabric High Speed Zipper Door For Pharmaceutical Factory | After-sale Service | Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other |
|---|---|---|---|
| Normal Speed | Open1.2m/s Close 0.6m/s | Max Speed | Open 2.5m/s Close 1.0m/s |
| Driving System | Servo Motor | Control System | Servo Type |
| Colors Of Fabric | Customized | Opening Frequency | 1000 Times /day |
| Wind Resistence | 25m/S (Class 10) | Installation Area | Exterior Or Interior |
| High Light | 5*5m Quick Roll Up Doors,Fireproof Quick Roll Up Doors,Pharmaceutical Roll Up Doors |
||
Product Description
Air Tight Quick PVC Fabric High Speed Zipper Door For Pharmaceutical Factory
Features
PVC High Speed Zipper Doors adopts Italy servo motor technology, with better stability and quicker response than tradtional frequency motor.
Technical Data
| Max. dimension | width * height 5000mm*5000mm |
| Power supply | 220±10%V, 50/60Hz. Output power 0.75-1.5KW |
| Door curtain | PVC fabric |
| Fabric color | yellow ,blue ,Red ,grey,white |
| Steel structure | Galvanized steel |
| Motor and controller | Italy servo technology |
| Safety device | Photo sensor, airbad sensor, light alarm |
| Wind resistance | Beaufort scale8(25m/s) |
| Protection level of electric | IP55 |
1. PVC Fabric:
Material: 1.0mm thick PVC Fabric
Other Thickness available: 1.2mm, 1.5mm
Function and performance: UV-resistant, Fire-resistant, Anti-mildew, Anti-bacteria, Self-cleaning, Oil-resistant, Acid and Alkali resistant, Anti-wicking, Anti-aging.
Special zipper design structure, connects the fabric and guide rails as a whole body, eliminating gap between them. It obviously improves overall seal performance and air tightness.
2. Motor
Italy servo technology motor. Power supply 220±10%V, 50/60Hz. Output power 0.75-1.5KW; Work temperature: -30-60 degree Celsius. With more accurate limiting and much longer work life than traditional brake motor.
3. Control system
Italy servo technology control system. With more accurate controlling of motor running than traditional encoder control. And Human-Machine Interface display is equipped, to make the daily operation and setting much easier and friendly. There is Fault Self-checking program and shows error codes when there is fault.
4. Frame and tracks
Two guide rails, one top cover and one motor cover included.
Thickness: 1.5 mm for guidrail and 1.0 mm for cover box.
Material material: standard is galvanized steel
Optional material: 304 stainless steel or aluminum alloy.
5. Safety performance
A. Safety photo cell sensor.
When there is human or vehicle under the door, the door will stop closing and get up automatically. This will avoid accident collisions.
B. Safety bottom airbag sensor
When the bottom bar of the door touches something, it will stop closing immediately and get up automatically.
C. Alarm light
When the door opens or closes, the lamp will keep flashing to warn passing human or vehicles.

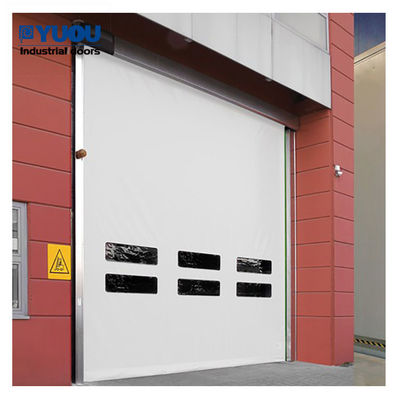

Product real photos
