Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width

  • Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
  • Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
  • Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
  • Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
Place of Origin china
Brand Name YUOU
Certification ISO9001
Model Number YUOU-high speed door-8
Minimum Order Quantity 1PCS
Price USD2200-3000/set
Packaging Details Carton packing or export wooden box packing
Delivery Time 10-15days
Payment Terms T/T, Western Union, MoneyGram, L/C,
Supply Ability 1000set /per month
Product Details
Product Name Fast Speed Fabric Soft Curtain Rolling Up Zipper PVC Folding Doors After-sales Service Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other
Certification ISO9001 Open Way Remote Control.
Motor SERVO Size As Customer's Request
Application Garage/commercial Shop/factory/warehouse. Brand YUOU
High Light

IP55 High Speed Roller Shutter Door

,

380V High Speed Roller Shutter Door

,

8m Rapid Shutter Door
Leave a Message
Product Description

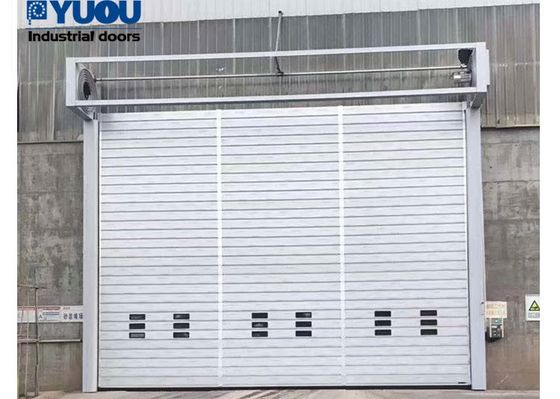

 Eco Friendly Modern Industrial Auto Rapid Roll-up Door



Technical Data:

Max dimension: 8000mm wide*8000mm high
Max opening Speed: 2.0m/s
Max closing speed: 1.0m/s
Wind resistance: Beaufort scale 12 (35m/s)
Power supply: 1-phase 220±10%V,50/60HZ,or 3-phase 380V±10%V,50/60HZ
Protection level of electric: IP55
Control system: Servo type
Driving system: Servo motor
Thermal conductivity factor: 1.9W/(㎡·K)
K-VALUE 0.4W/M2K
Sound insulation factor: R=25dB
Available colors of slat: Grey, Blue, White, Aluminum, Golden

1. Burglarproof and excellent thermal instalation:

The aluminum alloy rapid door panel is made of a double-layered aluminum plate at a time, and the surface is fine pressed stripe, which is anodized and organic colored, and filled with intermediate polyurethane foam. The middle internal broken bridge design can increase the heat preservation effect, prevent the indoor and outdoor temperature loss, and save energy. The surface of the door panel is subjected to 5 layers of organic coloring treatment, which greatly improves the corrosion resistance.



2. Torsion spring balance system: inbuilt into the side guide rails. It counteracts the door weight and prolongs working life of motor by reducing its load.



3. Emergency release device. It can be easily opened by hand with this device, under emergency situations like power failure or electrical faults.

4. Different color can choose.

Full clear vision panel slats ,more beautiful.

Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width 0Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width 1
