The soft curtain anti-collision freezer high speed doors represent the professional level of the world industrial doors. It has high reliablity and practicability. Its fast operation can save colling power consumption and save 14000USD of electricity every year for users.
In today's cold chain industry, it has a unique position in the field, and a reasonable mechanism design reduces the failure rate by 99.99%.
||width * height 3000mm*4500mm
||Insulated PVC sandwich fabric
||Anit-freezing heating device
||Self reparing and air tight structure
||Photo sensor, airbad sensor, light alarm
||Remote control, wall switch, Magnetic loop,Radar, Pull Rope Switch, Signal lamp
1. PVC Fabric:
Insulated PVC sandwich fabric: double skin is 0.8mm PVC fabric, and inside is filled with high-denisity insulating rock wool, total thickness is 20mm.
2. Motor and control system
Italy servo technology, With more accurate limiting and much longer work life than traditional brake motor.
3. Steel structure
Thickness: 1.5 mm for guidrail and 1.0 mm for cover box.
Material: galvanized steel or 304 stainless steel.
4. Zipper design:
Use zipper to connect the fabric with frame side guide rail as a whole body, realizing better sealing performance and air-tightness. And when there is accident collision, the fabric can get out from guide rail and return automatically, this reduces daily maintance.
5. Anti-freezing heating design:
Equip with anti-freezing heating cables inside the two guide rails, and the heating energy is installed in the control box to prevent the icing phenomenon in the guide rails and prolong the service life. This can avoid damage for door fabric and driving system when the door is frozen steadily.
6. Lifting method
The rapid cold storage door's lifting method has scroll and horizontal lifting. After rigorous experimental data, the reel type and horizontal lifting are ideal ways to upgrade.

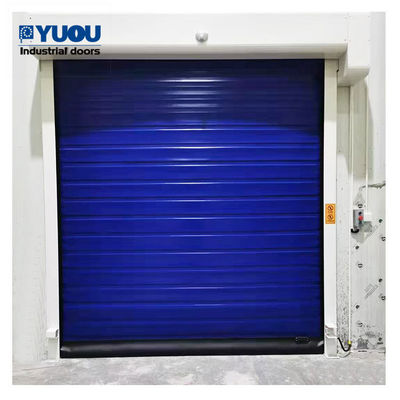

Product real photos
