Rapid Automatic IP55 Pvc Roller Shutter Doors Industrial Rolling Fabric Roll
Place of Origin | china |
---|---|
Brand Name | YUOU |
Certification | ISO9001 |
Model Number | YUOU-PVChigh speed door -4 |
Minimum Order Quantity | 1PCS |
Price | USD800-1500/set |
Packaging Details | Carton packing or export wooden box packing |
Delivery Time | 15-20days |
Payment Terms | T/T, Western Union, MoneyGram, L/C, |
Supply Ability | 1000set /per month |
Product Details
Product Name | Fast Speed Fabric Soft Curtain Rolling Up PVC Folding Doors | After Service | Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other |
---|---|---|---|
Type | Industrial Door | Size | Customized Size |
Open Way | Electrical,remote Control. | Opening Speed | Adjustable,1.2m/s~2.5m/s |
Material | PVC Fabric | Delivery Time | 15-20days |
Open Style | Rolling | Surface Finishing | Finished |
High Light | ip55 pvc rolling shutter door,ip55 pvc roller shutter doors,remote control pvc roller shutter doors |
Product Description

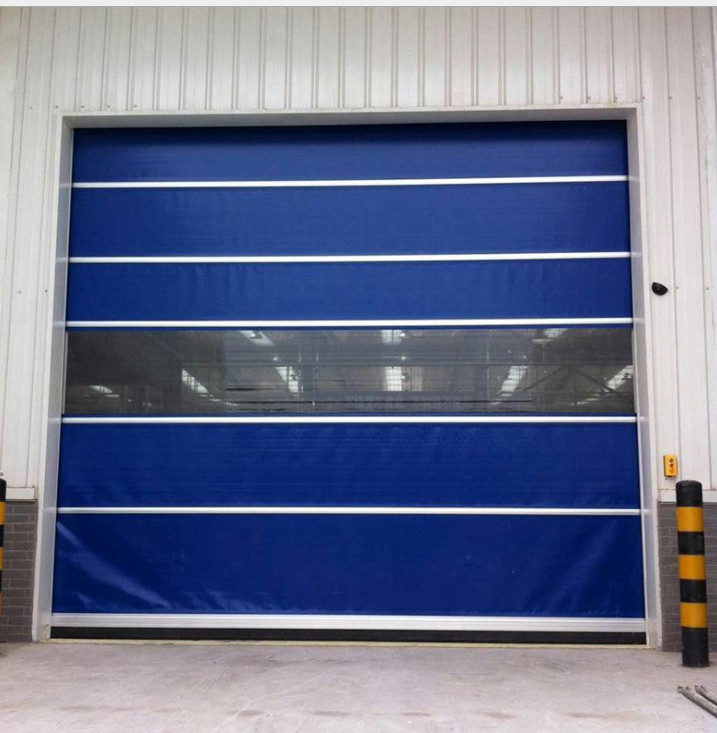

PVC Fabric High Speed Rolling Shutter Door
Application scope:
High efficiency intelligence and safety make it widely used in food, chemical, textile, electronics, supermarket, cold storage, logistics, warehousing and other production efficiency, dust-free and high temperature level requirements.
Max dimension: | 6000mm wide*6000mm high |
Max opening Speed: | 2.5m/s |
Max closing speed: | 1.0m/s |
Wind resistance: | Beaufort scale 10 (25m/s) |
Power supply: | 1-phase 220±10%V,50/60HZ,or 3-Phase 380V |
Protection level of electric: | IP55 |
Available colors of fabric: | Yellow, Blue, Red, Grey, White, Clear |
Door Details:
1.Driving system features:
Stable and easy to do the wire connection.
The motor and control box are perfectly compatible, its a complete whole set with the advanced Italian servo technology.
This new integrated design, Improve the electromagnetic interference existing in the complex wiring of the original PLC+ inverter + encoder, avoiding the fault caused by the wiring and plug.
Soft open and close, make the door have great work life.
Easy to operate
The interface control panel will make the door more easy to adjust ,it can realize all kinds of function by adjust it.
2.Steel Structure
Powder coated galvanized steel .1.5mm for Top cover and motor cover .2.0mm for guide rail.
304 stainless steel. 2.0mm
3.safety device.
Bottom soft edge airbag sensor
Photo sensor
Alarm light.
4.Different operation methods to meet different needs of the customer.
