Large Industrial Hangar Doors 380V Electric Army 100m Width 23DB Soundproof

  • Large Industrial Hangar Doors 380V Electric Army 100m Width 23DB Soundproof
  • Large Industrial Hangar Doors 380V Electric Army 100m Width 23DB Soundproof
Place of Origin Henan, China
Brand Name YUOU
Certification ISO9001
Model Number Yuou-Hangar door
Minimum Order Quantity 1 piece
Price $20000.00 - $80000.00/Piece
Packaging Details Standard export wooden case
Delivery Time 15 work days
Payment Terms D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Month
Product Details
Product Name Industrial Large Structural Framework Buildings Electric Army Airplane Sliding Hangar Door After-sale Service Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other
Panel Steel Thickness 0.5-0.8mm Max. Door Opening 100(W)x22(H)m
Steel Structure Galvanized Steel Door Material Steel + PU Foam
Opening Speed 6-18 M/min Working Temperature -40 To 50 Degrees
Power Supply 3-Phase 380V/50HZ Open Style Sliding Folding
Installation Aircraft, Shipyard, Research Base Package Standard Wooden Case
High Light

380V Industrial Hangar Doors

,

100m Industrial Hangar Doors

,

23DB Large Hangar Doors
Leave a Message
Product Description

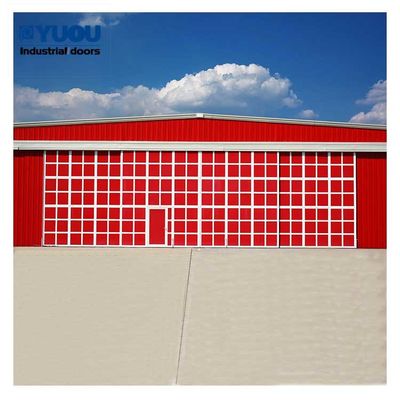

Industrial Large Structural Framework Buildings Electric Army Airplane Sliding Hangar Door

Description

Sliding hangar Doors are specially designed for hangars of civil or military airports and aircraft factories. It can horizontally move between the top and bottom tracks. There are single, double and multi panels, which can be installed indoor or outdoor according to the actual surroundings. Hangar Door has various forms, specifications and panels.

Technical Data

Door hole size Customized
Motor power of each leaf 0.75-1.5KW, 380±10%V, 50HZ
Control system Master control + sub control (PLC program)
Sound insulation 15-23DB
Moving speed

Highest speed: 20m/min

lowest speed: 6m/min

speed by manual: 3m/min
Heat transfer coefficient 1.623W/ m2℃
Working temperature -40℃～50℃
Basic wind pressure 0.65kN/m2(wind speed 30m/S)
Packing details Plastic Film+ Foam Board + Bubble Pack + Strong Carton

1. Door panel:

A. Corrugated steel plate: 0.5-0.8 power coated galvanized steel.

B. PU sandwich panel: 0.4mm double layer steel with PU foam inside.

C. PC sunlight plate.



2. Steel structure

A. Professional mechanical analysis of steel structure

B. All materials are hot galvanized, with excellent corrosion resistance.

C. All joints are fully welded or bolted with high strength.

3. Guide rail

A. Ground rail: 18-24kg

B. Top guide rail: 150-250mm H shaped steel



4. Wheels

A. Bottom bearing rail: conical design, wheels will be adjusted position automatically.

B. Top guide rail: special cylindrical design, the wheels could be moved up and down to adapt the possible deformation of the door.

5. Motor and controller

A. SIEMENTS brand motor with clutch

B. Variable frequency driving system to realize slow start and stop



Large Industrial Hangar Doors 380V Electric Army 100m Width 23DB Soundproof 0
