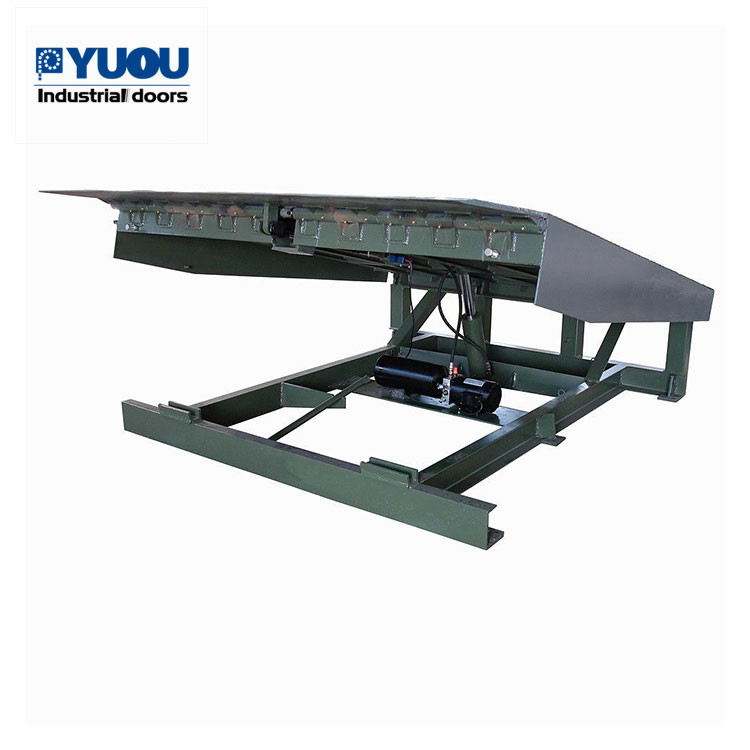

Platform Loading Dock Leveler Electric 2.2KW Hydraulic Fixed 12tons capacity 2500mm
| Place of Origin | Henan, China |
|---|---|
| Brand Name | YUOU |
| Certification | ISO9001 |
| Model Number | Yuou-Dock leveler |
| Minimum Order Quantity | 1 piece |
| Price | $1000.00 - $2000.00/Piece |
| Packaging Details | Standard export wooden case |
| Delivery Time | 15 work days |
| Payment Terms | D/A, L/C, , T/T, Western Union, MoneyGram |
| Supply Ability | 1000 Piece/Pieces per Month |
Product Details
| Product Name | Container Loading Platform Warehouse Electric Hydraulic Fixed Dock Leveler | After-sale Service | Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other |
|---|---|---|---|
| Table Size | 2500*2000*500mm | Lip Width | 400mm |
| Adjustable Range | +300/-300mm | Operating Temperature | -35~+50℃ |
| Tip Board | Micro-rib Steel Plate | Umbrella Protective Bar | Yes |
| Capacity | 5-10 Tons | Impact Rubber | 2pcs Per Set |
| Warranty | 1 Year | Color | Blue, Black, Green |
| High Light | 2500mm Loading Dock Leveler,12tons Loading Dock Leveler,2.2KW Electric Dock Leveler |
||
Product Description
Container Loading Platform Warehouse Electric Hydraulic Fixed Dock Leveler
Components Composition of Dock Leveler
The Dock Leveler consists of mechanical, hydraulic drive system and electric
Its main components as follows.
Technical data
| Power supply | 1Phase 220V or 3 Phase 380V |
| Loading capacity | 6000kg/10000kg/15000kg |
| Adjust scope | ± 300mm |
| Power of motor | 0.75-2.2KW |
| Standard leveler size | 2500x2000x500mm |
| Range of travel | +400mm -300mm |
| Lip size | 400mm |
| Loading capacity | 5-12tons |
| Color |
Blue/Grey/Green/Black |
| Swinging up | Single 16mm thickness, 400mm length |
|
Bumpers |
400 x 100 x 80mm |
|
Leveler Plate Material |
8.0mm Shanghai Baosteel tread plate |
|
Tip Board |
Q345 slip-resistant micro-rib steel plate, thickness:12-16mm, length:400mm |
|
Hydraulic Power Unit |
Inclusive of the internal tip operation being controlled by the hydraulic power system, to ensure it gives better reliability and reduce maintenance costs |
|
Electrical control system |
Safety protection design |
|
Hinge Chain |
Closed keys of the chain hinge |
|
Full range of foot care block |
2mm safety baffles, with yellow and black warning stripes |
|
Hydraulic velocity fuse |
It can stop the dock from accidental dropping |
|
Tip night self-locking device |
Yes |
|
Umbrella Protective Bar |
Yes |
|
Other features |
Perfect design keep smooth operation and low maintenance Lips extend and lower to the truck bed exactly Sub-frame structure designed for easy cleaning |
