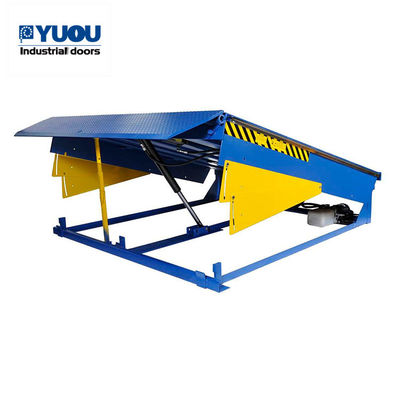

Loading Hydraulic Edge Of Dock Leveler 1.1kw Warehouse 6000kg Capacity 380V

Place of Origin China
Brand Name YUOU
Certification ISO9001
Model Number YUOU-dock-leveler-2
Minimum Order Quantity 1 set
Price USD1000-3000/set
Packaging Details wooden box packing , carton packing
Delivery Time 10-30days according to your order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 1000set/30days
Product Details
Product Name Dock Leveler After-sales Serivce Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other
Lift Drive / Actuation Hydraulic Warranty 1 Year
Dock Leveler Voltage 220/380V Dock Leveler Power 1.1kw
Dock Leveler Weight 300kg Dock Leveler Material High-Duty Steel Structure
Related Dock Shelter Standard Size 2500*2000*500 (Customized Available)
High Light

1.1kw Hydraulic Edge Of Dock Leveler


6000kg Hydraulic Edge Of Dock Leveler


380V Warehouse Dock Leveler

Leave a Message
Product Description

Hydraulic Warehouse Loading Hydraulic Dock Leveler Edge Of Dock Leveler ManufacturerDock

Dock Ramp or Loading Ramp, widely used in loading bays of logistics centers, warehouses and dispatch area of fact-
ories. In most cases, the container floor of truck will not be on the same level with loading bay floor. And this lead to
that, forklifts or trolley can not be used to load or unload goods into container. It will take much labor to move the goods
by hand. This will be very low efficient.

But with a automatic dock leveler, such problem with be solved perfectly. The stationary fixed dock leveler will be placed
into a pre-built concrete pit on the loading bay. A hydraulic motor drives the platform up and down, realizing seamless
joint between room ground and truck floor. Then,forklifts or trolleys can transfer goods quickly on the dock leveler platf-
orm. Thus it improves the loading&unloading efficiency obviously and also save much labor.

1. The overall assembly can bear 120% load of standard nominal load capacity. Under static pressure of 24 hours,
the deformation is within 3mm. And after pressure released , the deformation will recover.
2. Platform ground is made from high-strength 8mm or above thick steel plate. Surface is processed with groove mil-
ling to make it anti-skid.
3. Hinge and Shaft , are Super-High-Temperature heat treated, to reduce its deformation
4. Whole set of hydraulic drive station is imported from Europe, with stable power output. It can work under high fre-
quency because of very low work temperature of oil. High standard seal avoids oil leaking.
5. Surface treatment:Coated with epoxy resin paint, very durable and high anti-corrosive.

Complete Loading Bay or Dock:
Loading Bay is a complete assembly of Overhead Door, Dock Leveler and Dock Shelter&Seal. It is widely seen in wareh-
ouse, factory, and logistics industry. These three parts work together to improve loading efficiency and protect indoor
enviroment. We can offer the whole set for you. Please find more detail on page of Sectional Door and Dock Shelter.



Safety system a) self-locking
b) lip emergency stop
Working Range -300mm to 350mm
Bumpers 400 x 100 x 80mm
Loading Capacity 6000kg-15000kg
